E-BIKELIFTER CARGO PLUS CLAMP

Attach cargo bikes securely and stably to the individual mounting stand for easy and efficient maintenance

The Cargo plus Clamp from by,schulz is the smart solution for the mobile
e-bike lifter. Firmly bolted to the mounting stand, it enables the simple and safe lifting of almost all bikes, but especially cargo bikes. Manufactured in Germany from sturdy aluminum profiles, the holder can be universally adjusted for different frame shapes without tools.
A laterally rotating and height-adjustable swivel arm prevents tipping with heavy weights of up to 60 kg. This also makes it possible to service long cargo bikes. In combination with the e-bike lifter, the Cargo plus Clamp enables bicycle workshops to meet the increased requirements in the area of maintenance and service.

The Cargo plus Clamp from by,schulz is the smart solution for the mobile
e-bike lifter. Firmly bolted to the mounting stand, it enables the simple and safe lifting of almost all bikes, but especially cargo bikes. Manufactured in Germany from sturdy aluminum profiles, the holder can be universally adjusted for different frame shapes without tools.
A laterally rotating and height-adjustable swivel arm prevents tipping with heavy weights of up to 60 kg. This also makes it possible to service long cargo bikes. In combination with the e-bike lifter, the Cargo plus Clamp enables bicycle workshops to meet the increased requirements in the area of maintenance and service.

VIDEO

YouTube

We embed our videos via the YouTube platform. When playing the video, a data transmission to the USA takes place. By clicking the button "Watch video now", you expressly consent to a corresponding data transmission to the USA and thus an "unsafe third country". We expressly point out that currently the transfer takes place without the existence of an adequacy decision and without guarantees, which is associated with corresponding risks (access to data by US authorities). For more details, please refer to our
Privacy policy

Watch video now

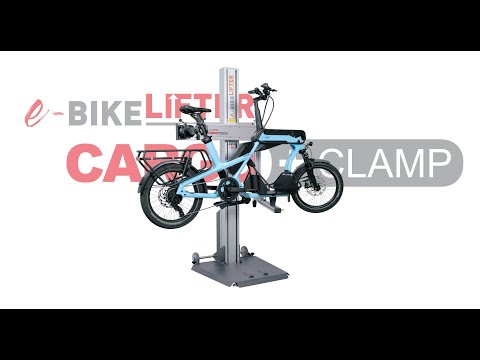

Video Tutorial

This video briefly presents the basic functions in a practical application example. You are also welcome to test the e-Bike Lifter and the Cargo plus Clamp at our company headquarters and see for yourself. Simply make an appointment with us by telephone.

USE OF THE CARGO PLUS CLAMP

1. EXTEND SIDE ARM

First, loosen the operating lever of the side arm at the rear to optimize the alignment of the side arm depending on the wheel’s centre of gravity.

2. HEIGHT ADJUSTMENT SWIVEL ARM

By loosening the two operating levers on the back, you can adjust the height of the swivel arm using the handle.

1. EXTEND SIDE ARM

First, loosen the operating lever of the side arm at the rear to optimize the alignment of the side arm depending on the wheel’s centre of gravity.

2. HEIGHT ADJUSTMENT SWIVEL ARM

By loosening the two operating levers on the back, you can adjust the height of the swivel arm using the handle.

3. ADJUST THE SWIVEL ARM

By loosening the operating lever in the lower part of the swivel arm, you can move it to the desired position. The operating lever must then be fixed again.

3. ADJUST THE SWIVEL ARM

By loosening the operating lever in the lower part of the swivel arm, you can move it to the desired position. The operating lever must then be fixed again.

4. POSITION THE DAMPER PAD

By turning the damper support, you can loosen it and move it to the desired position along the groove. Then tighten it again.

4. POSITION THE DAMPER PAD

By turning the damper support, you can loosen it and move it to the desired position along the groove. Then tighten it again.

5. HEIGHT ADJUSTMENT OF THE CLAMP

You can set the exact height of the clamp required on the e-Bike lift using the foot pedals. The foot pedals must be used with care due to the safety stop.

5. HEIGHT ADJUSTMENT OF THE CLAMP

You can set the exact height of the clamp required on the e-Bike lift using the foot pedals. The foot pedals must be used with care due to the safety stop.
